    PH699 - OIL/FUEL DISCHARGE HOSE WP 30 BAR

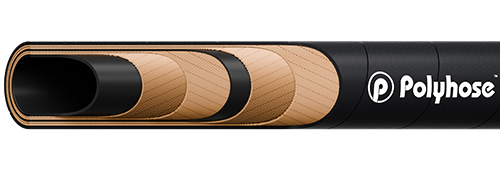

    product img

    Construction

    Inner tube

    Synthetic rubber - black resistant to oil

    Reinforcement

    Plies of synthetic textile cords with two cross anti static copper wires

    Cover

    Synthetic rubber - black resistant to oil, ozone and abrasion

    Application

    The FRAC oil delivery hose is designed for high pressure applications in hydraulic fracturing (FRAC) operations to support oil and gas extraction processes. This hose provides a reliable solution for transferring oil and other essential fluids in challenging environments where high pressure and durability are paramount.

    Item
    Code    		 Dash
    Size
    ID
    OD
    OD
    WP
    BP
    W
    inch mm inch mm psi bar psi bar kg/m
    PH699-32 -32 2 51.0 2.60 66.0 435 30 1305 90 0.50
    PH699-48 -48 3 76.0 3.62 92.0 435 30 1305 90 0.70
    PH699-64 -64 4 102.0 4.72 120.0 435 30 1305 90 0.90
    PH699-96 -96 6 152.0 6.69 170.0 435 30 1305 90 1.30

    imgTemperature Range : Continuous: -20°C to +80°C
