    PH239 - 3TE CPE RUBBER

    Applicable Standard : EN 854 - 3TE

    product img

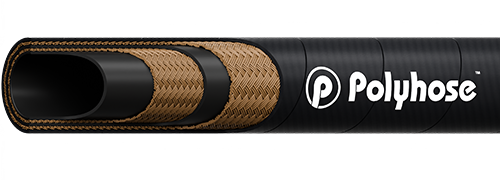

    Construction

    Inner tube

    Black CPE rubber, resistant to oil & water

    Reinforcement

    Double Textile Braid

    Cover

    Black CPE rubber, resistant to weather, oil & ozone.

    Application

    Medium pressure and low impulse hydraulic lines 40 to 145 bar for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & material handling equipment and machineries/systems

    Item
    Code
    Dash
    Size
    DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH239-04 -04 06 1/4 6.6 0.57 14.4 2105 145 8410 580 1.8 45 0.207
    PH239-05 -05 08 5/16 8.1 0.67 16.9 1885 130 7540 520 2.2 55 0.278
    PH239-06 -06 10 3/8 9.7 0.73 18.5 1595 110 6380 440 2.8 70 0.321
    PH239-08 -08 12 1/2 13.0 0.85 21.7 1380 95 5440 375 3.3 85 0.389
    PH239-10 -10 16 5/8 16.1 1.02 25.9 1160 80 4640 320 4.1 105 0.528
    PH239-12 -12 19 3/4 19.3 1.14 29.0 1015 70 4060 280 5.1 130 0.604
    PH239-16 -16 25 1 25.8 1.41 35.9 800 55 3190 220 5.9 150 0.812
    PH239-20 -20 31 1.1/4 32.3 1.67 42.3 655 45 2610 180 7.5 190 0.819
    PH239-24 -24 38 1.1/2 38.6 1.95 49.6 580 40 2320 160 9.4 240 1.178

    imgTemperature Range : Continuous: -40°C to +135°C Air not to exceed: +121°C

    *Smooth cover available only upto size 1"
