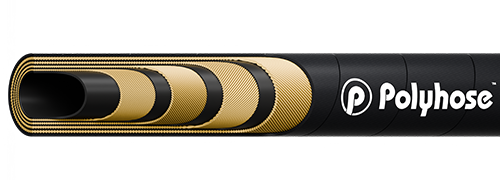

PH280 - WATER BLAST 30
Construction
Inner tube
Black colour, Synthetic rubber resistant to oil and water
Reinforcement
Four high tensile steel wire spirals
Cover
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone
Application
Water blasting, Water jetting, cleaning equipment. Delivery of water and water emulsions
| Item Code |
Dash Size |
DN |
ID
|
RI OD
|
OD
|
WP
|
BP
|
BR/r
|
W
|
||||||
| inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH280-04 | -04 | 06 | 1/4 | 6.4 | 0.58 | 14.7 | 0.70 | 17.9 | 12325 | 850 | 30815 | 2125 | 5.12 | 130 | 0.627 |
| PH280-06 | -06 | 10 | 3/8 | 9.5 | 0.69 | 17.5 | 0.83 | 21.1 | 12325 | 850 | 30815 | 2125 | 6.10 | 155 | 0.838 |
| PH280-08 | -08 | 12 | 1/2 | 12.7 | 0.84 | 21.3 | 0.97 | 24.6 | 12325 | 850 | 30815 | 2125 | 7.87 | 200 | 1.184 |
| PH280-12 | -12 | 19 | 3/4 | 19.0 | 1.17 | 29.8 | 1.29 | 32.8 | 12325 | 850 | 30815 | 2125 | 9.84 | 250 | 2.024 |
| PH280-16 | -16 | 25 | 1 | 25.4 | 1.38 | 35.1 | 1.51 | 38.3 | 12325 | 850 | 30815 | 2125 | 11.81 | 300 | 2.447 |
Temperature Range : Continuous: -40°C to +90°C
