PH102 - TRACK SAFE - R6
Applicable Standard : SAE J517 - 100R6 / EN 45545-2

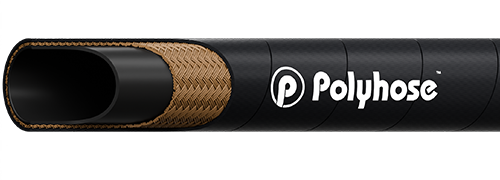

Construction
Inner tube
Synthetic rubber - black resistant to oil and water
Reinforcement
Textile reinforcement
Cover
Synthetic rubber - black resistant to abrasion and weather, oil & ozone.
Application
High performance low pressure railway hose meets hazard level HL1 & HL2 of R22 & R23. The specific fire-retardant cover minimizes the release of toxic substances & better visibility in case of fire. This compliance is crucial to enhance passenger safety and prevent the spread of fire within railway vehicles.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH102-03 | -03 | 05 | 3/16 | 4.8 | 0.44 | 11.1 | 510 | 35 | 2030 | 140 | 2.0 | 50 | 0.119 |
| PH102-04 | -04 | 06 | 1/4 | 6.4 | 0.50 | 12.7 | 435 | 30 | 1670 | 115 | 2.6 | 65 | 0.141 |
| PH102-05 | -05 | 08 | 5/16 | 8.0 | 0.56 | 14.3 | 435 | 30 | 1670 | 115 | 3.0 | 75 | 0.164 |
| PH102-06 | -06 | 10 | 3/8 | 9.5 | 0.63 | 15.9 | 435 | 30 | 1670 | 115 | 3.0 | 75 | 0.175 |
| PH102-08 | -08 | 12 | 1/2 | 12.7 | 0.78 | 19.8 | 435 | 30 | 1670 | 115 | 3.9 | 100 | 0.285 |
| PH102-10 | -10 | 16 | 5/8 | 15.9 | 0.91 | 23.0 | 365 | 25 | 1450 | 100 | 4.9 | 125 | 0.336 |
| PH102-12 | -12 | 19 | 3/4 | 19.1 | 1.05 | 26.6 | 365 | 25 | 1235 | 85 | 5.9 | 150 | 0.413 |
| PH102-14 | -14 | 22 | 7/8 | 22 | 1.22 | 31.0 | 290 | 20 | 1160 | 80 | 7.9 | 200 | 0.558 |
| PH102-16 | -16 | 25 | 1 | 25.6 | 1.33 | 33.8 | 220 | 15 | 870 | 60 | 7.9 | 200 | 0.605 |
| PH102-20 | -20 | 31 | 1.1/4 | 32.2 | 1.58 | 40.2 | 290 | 20 | 1160 | 80 | 9.8 | 250 | 0.739 |
| PH102-24 | -24 | 38 | 1.1/2 | 38.0 | 2.01 | 51.0 | 220 | 15 | 870 | 60 | 15.7 | 400 | 1.430 |
Temperature Range : Continuous: -40°C to +100°C
