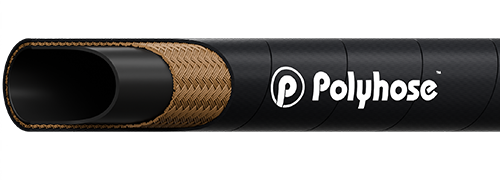

PH510 - AIR BRAKE HOSE LOW TEMPERATURE
Applicable Standard : Exceeds SAE J1402 Type A
Construction
Inner tube
Polyhose synthetic rubber - black resistant to air
Reinforcement
Textile reinforcement
Cover
Polyhose synthetic rubber - black resistant to abrasion weather & ozone
Application
Automotive Air Brake System; Tractor - Trailer Air Brake connections
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH510-04 | -04 | 06 | 1/4 | 6.4 | 0.63 | 15.9 | 150 | 10 | 870 | 60 | 2.6 | 65 | 0.260 |
| PH510-05 | -05 | 08 | 5/16 | 7.9 | 0.69 | 17.5 | 150 | 10 | 870 | 60 | 3.0 | 75 | 0.330 |
| PH510-06 | -06 | 10 | 3/8 | 9.5 | 0.75 | 19.05 | 150 | 10 | 870 | 60 | 3.5 | 90 | 0.377 |
| PH510-07 | -07 | 11 | 7/16 | 11.1 | 0.81 | 20.6 | 150 | 10 | 870 | 60 | 3.9 | 100 | 0.379 |
| PH510-08 | -08 | 12 | 1/2 | 12.7 | 0.87 | 22.2 | 150 | 10 | 870 | 60 | 3.9 | 100 | 0.486 |
| PH510-09 | -09 | 14 | 9/16 | 14.0 | 1.0 | 25.4 | 150 | 10 | 870 | 60 | 4.3 | 110 | 0.506 |
| PH510-10 | -10 | 16 | 5/8 | 15.9 | 1.06 | 27.0 | 150 | 10 | 870 | 60 | 4.5 | 115 | 0.530 |
Temperature Range : Continuous: -55°C to +100°C
