PH622 - HIGH PRESSURE PLASTER SPRAY HOSE

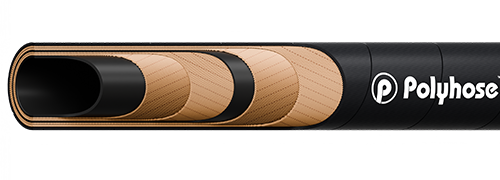

Construction
Inner tube
Black colour, Synthetic and natural rubber blend resistant to abrasion
Reinforcement
- Plies of synthetic textile cords
Cover
Black colour, Synthetic rubber resistant to ozone, weather and abrasion
Application
For High Pressure Cement/ Plaster Spraying in construction industry
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | kg/m | ||
| PH622-16 | -16 | 1 | 25.0 | 1.54 | 39.0 | 580 | 40 | 1740 | 120 | 0.93 |
| PH622-20 | -20 | 1.1/4 | 32.0 | 1.81 | 46.0 | 580 | 40 | 1740 | 120 | 1.15 |
| PH622-24 | -24 | 1.1/2 | 38.0 | 2.13 | 54.0 | 580 | 40 | 1740 | 120 | 1.60 |
| PH622-32 | -32 | 2 | 51.0 | 2.72 | 69.0 | 580 | 40 | 1740 | 120 | 2.50 |
| PH622-40 | -40 | 2.1/2 | 64.0 | 3.39 | 86.0 | 580 | 40 | 1740 | 120 | 3.00 |
| PH622-48 | -48 | 3 | 76.0 | 3.86 | 98.0 | 580 | 40 | 1740 | 120 | 4.20 |
| PH622-64 | -64 | 4 | 102.0 | 5.12 | 130.0 | 580 | 40 | 1740 | 120 | 5.60 |
| PH622-80 | -80 | 5 | 127.0 | 6.18 | 157.0 | 580 | 40 | 1740 | 120 | 6.00 |
| PH622-24 | -24 | 1.3/8 | 35.0 | 2.00 | 51.0 | 580 | 40 | 1740 | 120 | 1.400 |
Temperature Range : Continuous: -30°C to +70°C
