    PH531 - FUEL HOSE

    Applicable Standard : SAE J30 R2 TYPE 2

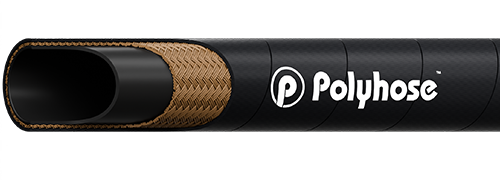

    product img

    Construction

    Inner tube

    Black colour, Synthetic rubber resistant to oil and fuel

    Reinforcement

    Textile reinforcement

    Cover

    Black Colour, Synthetic rubber resistant to oil, ozone. Available in Wrap and Smooth finish*

    Application

    Low Pressure coupled and uncoupled low-permeation Fuel hose for Automotive and allied application, Physical, Extrac table and fuel permeation properties as specified in SAE J30 - R2 - Type 2 standard for use with gasoline, diesel fuel, lubrication oil, or the vapour present in either fuel system or in crank case of internal combustion engines.

    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH531-03 -03 05 3/16 4.76 0.53 13.5 145 10 725 50 2.0 50 0.131
    PH531-04 -04 06 1/4 6.35 0.59 15.1 145 10 725 50 2.6 65 0.155
    PH531-05 -05 08 5/16 7.94 0.66 16.7 145 10 725 50 3.0 75 0.180
    PH531-06 -06 10 3/8 9.53 0.72 18.2 145 10 725 50 3.0 75 0.193
    PH531-08 -08 12 1/2 12.7 0.84 21.4 145 10 725 50 3.9 100 0.314
    PH531-10 -10 16 5/8 15.88 0.97 24.6 145 10 510 35 4.9 125 0.370
    PH531-12 -12 19 3/4 19.05 1.09 27.8 145 10 510 35 5.9 150 0.454

    imgTemperature Range : Continuous: -40°C to +100°C

    *Smooth cover available only upto size 1"
