    PH259 - R15 ABRAZON - X MSHA

    Applicable Standard : SAE J517 -100R15 / ISO 3862

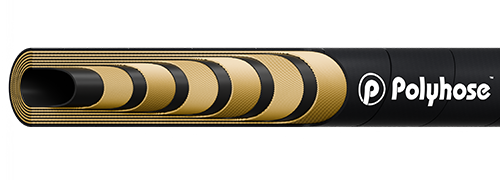

    product img

    Construction

    Inner tube

    Black colour, Synthetic rubber resistant to oil and water

    Reinforcement

    Four high tensile steel wire spiral (DN19-25), Six high tensile steel wire spiral (DN31-51)

    Cover

    Abrazon-X Black, Exceptionally abrasion, oil, ozone resistant synthetic rubber sheathed with layer of UHMW-PE foil.

    Application

    420 bar super high pressure Hydraulic Lines and hydrostatic transmission lines. Also, suitable for impulse surge lines with more life cycles for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving equipment and machineries / systems

    Note : 5/8" & 2" Not covered under SAE 100R15
    Item
    Code    		 Dash
    Size    		 DN
    ID
    RI OD
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm inch mm psi bar psi bar inch mm kg/m
    PH259-06 -06 10 3/8 9.8 0.69 17.5 0.84 21.4 6000 420 24000 1680 3.50 90 0.822
    PH259-08 -08 12 1/2 13.1 0.80 20.4 0.82 24.6 6000 420 24000 1680 4.50 115 0.994
    PH259-10 -10 16 5/8 16.2 0.97 24.6 1.06 27.0 6000 420 24000 1680 4.70 120 1.258
    PH259-12 -12 19 3/4 19.2 1.14 29.0 1.27 32.2 6090 420 24360 1680 10.43 265 1.814
    PH259-16 -16 25 1 25.7 1.40 35.6 1.53 38.9 6090 420 24360 1680 12.99 330 2.277
    PH259-20 -20 31 1.1/4 32.2 1.85 47.0 1.96 49.8 6090 420 24360 1680 17.52 445 4.269
    PH259-24 -24 38 1.1/2 38.5 2.17 55.1 2.28 58.0 6090 420 24360 1680 20.87 530 5.747
    PH259-32 -32 51 2 51.2 2.68 68.0 2.80 71.2 6090 420 24360 1680 23.62 600 8.217

    imgTemperature Range : Continuous: -40°C to +121°C

    Impulse Cycles : 500,000 cycles
