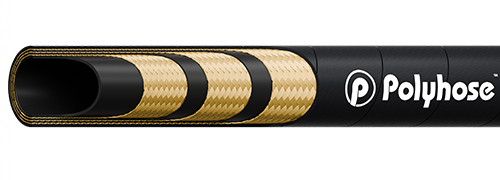

PH109 - TRACK SAFE - TRIFLEX
Construction
Inner tube
Synthetic rubber - black resistant to oil
Reinforcement
Three high tensile steel braids
Cover
Synthetic rubber - black resistant to abrasion and weather, oil & ozone.
Application
High pressure railway hose meets hazard level HL1 & HL2 of R22 & R23. The specific fire-retardant cover minimizes the release of toxic substances & better visibility in case of fire. This compliance is crucial to enhance passenger safety and prevent the spread of fire within railway vehicles.
| Item Code |
Dash Size |
DN |
ID
|
RI OD
|
OD
|
WP
|
BP
|
BR/r
|
W
|
||||||
| inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH109-06 | -06 | 10 | 3/8 | 9.5 | 0.70 | 17.7 | 0.84 | 21.3 | 7250 | 500 | 29000 | 2000 | 7.09 | 180 | 0.832 |
| PH109-08 | -08 | 12 | 1/2 | 12.7 | 0.81 | 20.5 | 0.96 | 24.3 | 6815 | 470 | 27260 | 1880 | 9.06 | 230 | 1.017 |
| PH109-10 | -10 | 16 | 5/8 | 16.0 | 0.96 | 24.4 | 1.10 | 28.0 | 5945 | 410 | 23780 | 1640 | 9.84 | 250 | 1.199 |
| PH109-12 | -12 | 19 | 3/4 | 19.0 | 1.09 | 27.8 | 1.24 | 31.5 | 5440 | 375 | 21750 | 1500 | 11.81 | 300 | 1.457 |
| PH109-16 | -16 | 25 | 1 | 25.4 | 1.37 | 34.7 | 1.52 | 38.7 | 4570 | 315 | 18270 | 1260 | 13.39 | 340 | 1.902 |
Temperature Range : Continuous: -40°C to +100°C
Intermittent : +120°C
