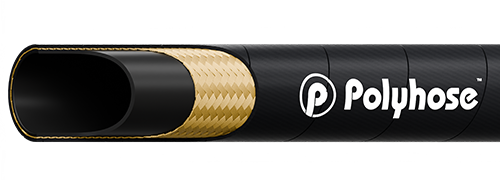

PH243 - 1ST
Applicable Standard : EN 853 - 1ST
Construction
Inner tube
Black Color, Synthetic rubber resistant to oil and water
Reinforcement
- Single steel wire braid
Cover
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*
Application
Medium Pressure Hydraulic Lines 35 to 40 bar. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agriculture, Earthmoving & Material handling equipment and machineries/systems
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH243-32 | -32 | 51 | 2 | 51 | 2.64 | 67.0 | 580 | 40 | 2320 | 160 | 24.8 | 630 | 2.801 |
| PH243-48 | -48 | 76 | 3 | 76 | 3.62 | 92.0 | 510 | 35 | 2030 | 140 | 35.4 | 900 | 3.936 |
Temperature Range : Continuous: -40°C to +100°C
Intermittent : +120°C
*Smooth cover available only upto size 1"
