    PH219 - 4SP HARD - X MSHA

    Applicable Standard : EN 856 - 4SP / ISO 3862

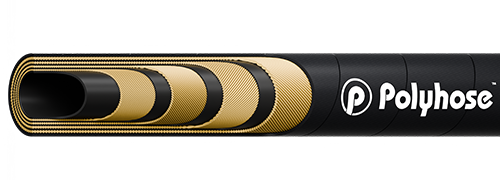

    product img

    Construction

    Inner tube

    Black colour, Synthetic rubber resistant to oil and water

    Reinforcement

    Four high tensile steel wire spirals

    Cover

    Hard-X Black, Extra abrasion, oil, ozone resistant synthetic rubber.

    Application

    Medium pressure Hydraulic Lines 165 to 450 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving & Material handling equipment and machineries/systems

    Item
    Code    		 Dash
    Size    		 DN
    ID
    RI OD
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm inch mm psi bar psi bar inch mm kg/m
    PH219-04 -04 06 1/4 6.6 0.58 14.7 0.70 17.9 6525 450 26100 1800 5.91 150 0.627
    PH219-06 -06 10 3/8 9.7 0.69 17.5 0.84 21.4 6455 445 25810 1780 7.09 180 0.822
    PH219-08 -08 12 1/2 13.0 0.80 20.4 0.97 24.6 6020 415 24070 1660 9.06 230 0.994
    PH219-10 -10 16 5/8 16.2 0.94 23.8 1.11 28.2 5075 350 20300 1400 9.84 250 1.222
    PH219-12 -12 19 3/4 19.3 1.12 28.4 1.27 32.2 5510 380 22040 1520 11.81 300 1.605
    PH219-16 -16 25 1 25.9 1.40 35.5 1.56 39.7 4640 320 18560 1280 13.39 340 2.277
    PH219-20 -20 31 1.1/4 32.4 1.81 46.0 2.00 50.8 3045 210 12180 840 18.11 460 3.368
    PH219-24 -24 38 1.1/2 38.6 2.06 52.4 2.25 57.2 2685 185 10730 740 22.05 560 3.911
    PH219-32 -32 51 2 51.3 2.57 65.3 2.75 69.8 2395 165 9570 660 25.98 660 5.185

    imgTemperature Range : Continuous: -40°C to +100°C

    Intermittent : +120°C

    Impulse Cycles : 400,000 cycles
