PH133 - TRACK SAFE - R13
Applicable Standard : SAE J517 - 100R13 / EN 856 - R13/ ISO 3862 / EN 45545-2

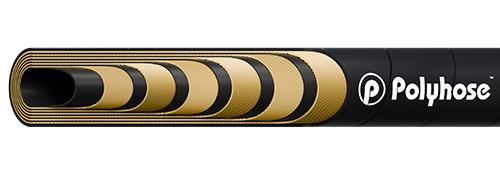

Construction
Inner tube
Synthetic rubber resistant to oil and water
Reinforcement
Four high tensile steel wire spiral (DN19-25), Six high tensile steel wire spiral (DN31-51)
Cover
Synthetic rubber resistant to abrasion, weather, oil & ozone.
Application
350 bar super high pressure Hydraulic Lines and hydrostatic transmission lines. Also, suitable for impulse surge lines with more life cycles for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving equipment and machineries / systems. Hose meets hazard level HL1 & HL2 of R22 & R23. The specific fire-retardant cover minimizes the release of toxic substances & better visibility in case of fire. This compliance is crucial to enhance passenger safety and prevent the spread of fire within railway vehicles.
| Item Code |
Dash Size |
DN |
ID
|
RI OD
|
OD
|
WP
|
BP
|
BR/r
|
W
|
||||||
| inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH133-12 | -12 | 19 | 3/4 | 19.2 | 1.14 | 29.0 | 1.26 | 32.1 | 5075 | 350 | 20300 | 1400 | 9.45 | 240 | 1.814 |
| PH133-16 | -16 | 25 | 1 | 25.7 | 1.40 | 35.6 | 1.52 | 38.7 | 5075 | 350 | 20300 | 1400 | 11.81 | 300 | 2.277 |
| PH133-20 | -20 | 31 | 1.1/4 | 32.2 | 1.85 | 47.0 | 1.96 | 49.8 | 5075 | 350 | 20300 | 1400 | 16.54 | 420 | 4.269 |
| PH133-24 | -24 | 38 | 1.1/2 | 38.5 | 2.17 | 55.1 | 2.26 | 57.3 | 5075 | 350 | 20300 | 1400 | 19.69 | 500 | 5.747 |
| PH133-32 | -32 | 51 | 2 | 51.4 | 2.67 | 67.7 | 2.80 | 71.1 | 5075 | 350 | 20300 | 1400 | 25.20 | 640 | 7.852 |
Temperature Range : Continuous: -40°C to +121°C
Impulse Cycles : 500,000 cycles
