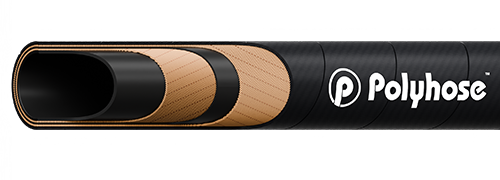

PH684 - SHOT BLASTING HOSE W.P. 12 BAR
Construction
Inner tube
Black Colour, Synthetic and natural rubber blend resistant to abrasion
Reinforcement
Four Plies of synthetic textile cords with two cross anti static copper wires
Cover
Black colour, Synthetic rubber resistant to ozone, weather and abrasion
Application
Suitably designed long lasting heavy duty hose for use in sand , metal grits and foundry waste with conductive rubber compound to ensure static electricity dissipation abrasion loss of the tube according to ISO 4649: 50+5mm3
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | kg/m | ||
| PH684-08 | -08 | 1/2 | 12.7 | 1.18 | 30.0 | 175 | 12 | 525 | 36 | 0.75 |
| PH684-12 | -12 | 3/4 | 19.0 | 1.50 | 38.0 | 175 | 12 | 525 | 36 | 1.10 |
| PH684-16 | -16 | 1 | 25.0 | 1.89 | 48.0 | 175 | 12 | 525 | 36 | 1.60 |
| PH684-20 | -20 | 1.1/4 | 32.0 | 2.17 | 55.0 | 175 | 12 | 525 | 36 | 1.90 |
| PH684-24 | -24 | 1.1/2 | 38.0 | 2.40 | 61.0 | 175 | 12 | 525 | 36 | 2.15 |
| PH684-32 | -32 | 2 | 51.0 | 2.87 | 73.0 | 175 | 12 | 525 | 36 | 2.65 |
Temperature Range : Continuous: -30°C to +70°C
