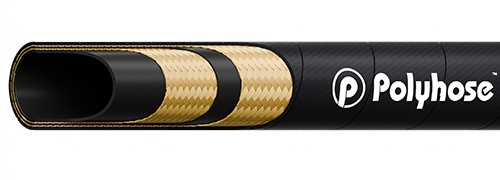

PH415 - 5000 PSI LOW TEMPERATURE
Applicable Standard : ISO 18752 - AC
Construction
Inner tube
Black colour, synthetic rubber resistant to oil and water
Reinforcement
Double steel wire braids
Cover
Black colour, synthetic rubber resistant to weather, oil & ozone. Smooth* and wrap finish applicable only wire braided hose
Application
Constant pressure hydraulic Lines 350 bar for use with petroleum or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & material handling equipments / systems
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH415-04 | -04 | 06 | 1/4 | 6.7 | 0.52 | 13.2 | 5000 | 350 | 20000 | 1400 | 2.0 | 50 | 0.323 |
| PH415-05 | -05 | 08 | 5/16 | 8.2 | 0.59 | 15.0 | 5000 | 350 | 20000 | 1400 | 2.2 | 55 | 0.366 |
| PH415-06 | -06 | 10 | 3/8 | 9.8 | 0.67 | 17.1 | 5000 | 350 | 20000 | 1400 | 2.6 | 65 | 0.466 |
| PH415-08 | -08 | 12 | 1/2 | 13.1 | 0.82 | 20.6 | 5000 | 350 | 20000 | 1400 | 3.5 | 90 | 0.624 |
Temperature Range : -55°C to +100°C
Impulse Cycles : 2,00,000
*Smooth cover available only upto size 1"
