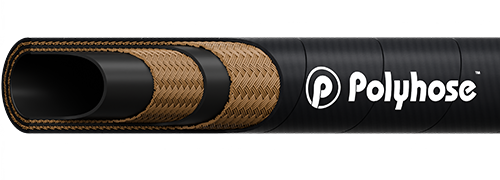

PH2GC - POWER STEERING PRESSURE HOSE
Applicable Standard : SAE J188
Construction
Inner tube
Synthetic rubber - back resistant to oil and water
Reinforcement
Double Textile Braid
Cover
Synthetic rubber - black resistant to abrasion and weather, oil & ozone.
Application
For use in automotive power steering applications, where hydraulic system operates under extreme temperature conditions.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH2GC-06 | -06 | 10 | 3/8 | 9.8 | 0.77 | 19.5 | 1525 | 105 | 6090 | 420 | 4.9 | 125 | 0.314 |
Temperature Range : Continuous: -40°C to +135°C
