    PH174 - BCS

    Applicable Standard : BCS 174 - 1992

    product img

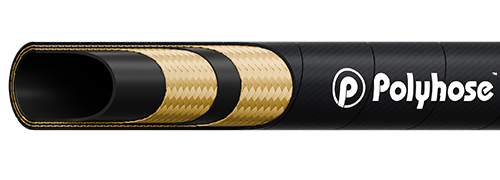

    Construction

    Inner tube

    Black colour, Synthetic rubber resistant to oil and water

    Reinforcement

    Double high tensile steel wire braids

    Cover

    Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in Wrap and Smooth finish*

    Application

    High Pressure Hydraulic Lines 115 to 450 bar for use with petroleum, synthetic or water based fluids in Hydraulic systems. Specially made as per British coal 174 specification and to be used in underground mining equipment machines and roof support system. Also in long wall mining applications

    Cover Options
    PH174 : MSHA
    Note : 5/8" Not covered under BCS 174. DGMS approved
    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH174-04 -04 06 1/4 6.3 0.67 17.0 6525 450 26100 1800 3.9 100 0.504
    PH174-06 -06 10 3/8 9.5 0.84 21.4 5510 380 22040 1520 5.1 130 0.712
    PH174-08 -08 12 1/2 12.7 1.04 26.4 5295 365 21025 1450 5.9 150 0.977
    PH174-10 -10 16 5/8 16.0 1.18 30.0 4060 280 16240 1120 7.5 190 1.300
    PH174-12 -12 20 3/4 19.0 1.32 33.6 4060 280 16025 1105 9.1 230 1.514
    PH174-16 -16 25 1 25.4 1.60 40.6 3120 215 12470 860 11.8 300 1.756
    PH174-20 -20 31 1.1/4 31.7 1.87 47.5 2540 175 10005 690 15.0 380 2.090
    PH174-24 -24 38 1.1/2 38.4 2.13 54.1 2175 150 8485 585 17.7 450 2.763
    PH174-32 -32 51 2 51.1 2.63 66.8 1670 115 6525 450 23.6 600 3.541

    imgTemperature Range : Continuous: -40°C to +100°C

    Intermittent : +120°C

    *Smooth cover available only upto size 1"
