PH431 TITAN GENERAL AIR/WATER - 500 PSI MSHA
Applicable Standard : AS 2554 Class A

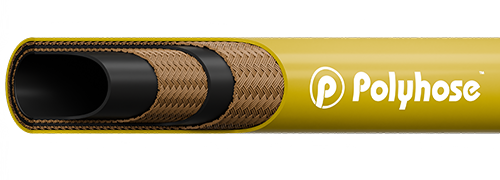

Construction
Inner tube
Black colour, synthetic rubber resistant to air & water
Reinforcement
Double fiber braids
Cover
Yellow colour, synthetic rubber resistant to weather, abrasion & ozone. Available in wrap and smooth finish*
Application
Low pressure multipurpose industrial hose with a wide range of application in agricultural, construction & material handling equipments, ship buildings.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH431-12 | -12 | 19 | 3/4 | 19.1 | 1.19 | 30.2 | 500 | 35 | 2250 | 155 | 7.5 | 190 | 0.625 |
| PH431-16 | -16 | 25 | 1 | 25.4 | 1.5 | 38 | 500 | 35 | 2250 | 155 | 8.1 | 205 | 0.882 |
Temperature Range : Continuous: -40°C to +90°C
*Smooth cover available only upto size 1"
