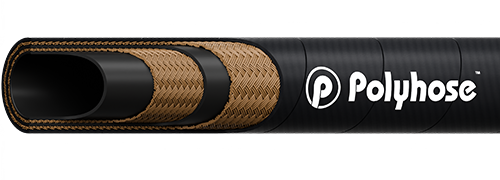

PH130 - R3 TEMP MASTER MSHA
Applicable Standard : Exceeds SAE J517 - 100R3
Construction
Inner tube
Synthetic rubber - black resistant to oil and water
Reinforcement
Double textile braids
Cover
Synthetic rubber - black resistant to abrasion, weather, oil & ozone
Application
Hoses for use with petroleum and water base hydraulic fluids. Suitable for agricultural, Earth moving, construction & material handling equipments under elevated temperatures
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH130-06 | -06 | 10 | 3/8 | 9.6 | 0.75 | 19 | 1160 | 80 | 4570 | 315 | 3.9 | 100 | 0.331 |
| PH130-08 | -08 | 12 | 1/2 | 12.9 | 0.94 | 23.8 | 1015 | 70 | 4060 | 280 | 4.9 | 125 | 0.49 |
| PH130-10 | -10 | 16 | 5/8 | 16.1 | 1.06 | 27.0 | 945 | 65 | 3555 | 245 | 5.5 | 140 | 0.615 |
| PH130-12 | -12 | 19 | 3/4 | 19.2 | 1.25 | 31.8 | 800 | 55 | 3045 | 210 | 5.9 | 150 | 0.758 |
| PH130-16 | -16 | 25 | 1 | 25.6 | 1.48 | 37.6 | 580 | 40 | 2320 | 160 | 8.1 | 205 | 0.857 |
| PH130-20 | -20 | 31 | 1.1/4 | 32.1 | 1.73 | 44.0 | 435 | 30 | 1525 | 105 | 9.8 | 250 | 1.089 |
Temperature Range : -40°C to +135°C
