PH211 - TRACK SAFE - 2SC
Applicable Standard : EN 857 - 2SC / SAE 100R16 / ISO 11237 / EN 45545-2

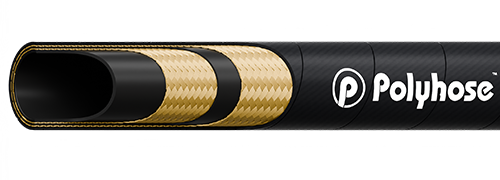

Construction
Inner tube
Synthetic rubber - black resistant to oil and water
Reinforcement
Double steel wire braids
Cover
Synthetic rubber - black resistant to abrasion, weather, oil & ozone.
Application
High performance High Pressure Hydraulic Lines 125 to 400 bar railway hose for use with petroleum, synthetic or water based fluids in Hydraulic systems. Hose meets hazard level HL1 & HL2 of R22 & R23. The specific fire-retardant cover minimizes the release of toxic substances & better visibility in case of fire. This compliance is crucial to enhance passenger safety and prevent the spread of fire within railway vehicles.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH211-04 | -04 | 06 | 1/4 | 6.7 | 0.52 | 13.2 | 5800 | 400 | 23200 | 1600 | 2.0 | 50 | 0.323 |
| PH211-05 | -05 | 08 | 5/16 | 8.2 | 0.59 | 14.9 | 5075 | 350 | 20300 | 1400 | 2.2 | 55 | 0.366 |
| PH211-06 | -06 | 10 | 3/8 | 9.8 | 0.67 | 17.1 | 4785 | 330 | 19140 | 1320 | 2.6 | 65 | 0.466 |
| PH211-08 | -08 | 12 | 1/2 | 13.1 | 0.80 | 20.4 | 3990 | 275 | 15950 | 1100 | 3.5 | 90 | 0.624 |
| PH211-10 | -10 | 16 | 5/8 | 16.3 | 0.93 | 23.5 | 3625 | 250 | 14500 | 1000 | 3.9 | 100 | 0.736 |
| PH211-12 | -12 | 19 | 3/4 | 19.3 | 1.10 | 28 | 3120 | 215 | 12470 | 860 | 4.7 | 120 | 0.932 |
| PH211-16 | -16 | 25 | 1 | 25.9 | 1.41 | 35.7 | 2395 | 165 | 9570 | 660 | 5.9 | 150 | 1.324 |
| PH211-20 | -20 | 31 | 1.1/4 | 32.2 | 1.73 | 43.9 | 1815 | 125 | 7250 | 500 | 8.3 | 210 | 1.750 |
| PH211-24 | -24 | 38 | 1.1/2 | 38.7 | 1.89 | 48.0 | 1450 | 100 | 5800 | 400 | 9.8 | 250 | 1.760 |
| PH211-32 | -32 | 51 | 2 | 51.3 | 2.43 | 61.6 | 1305 | 90 | 5220 | 360 | 11.8 | 300 | 2.300 |
Temperature Range : Continuous: -40°C to +100°C
Intermittent : +120°C
Impulse Cycles : 200,000; Tested upto 400,000 cycles,upto 1"I.D
*Smooth cover available only upto size 1"
