    PH230 - 2SC HARD - X MSHA

    Applicable Standard : EN 857 - 2SC / SAE 100R16 / ISO 11237

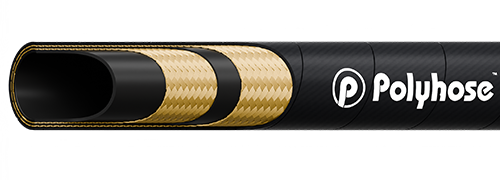

    product img

    Construction

    Inner tube

    Black Color, Synthetic rubber resistant to oil and water

    Reinforcement

    Double steel wire braids

    Cover

    Hard-X Black, Extra abrasion, oil, ozone resistant synthetic rubber. Available in Wrap and Smooth finish*

    Application

    High Pressure Hydraulic Lines 125 to 400 bar requiring compact outer dia and high flexibility for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving & Material handling equipment and machineries/systems

    Note : 1.1/4" 1SC not covered under EN857
    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH230-04 -04 06 1/4 6.7 0.52 13.2 5800 400 23200 1600 2.0 50 0.323
    PH230-05 -05 08 5/16 8.2 0.59 14.9 5075 350 20300 1400 2.2 55 0.366
    PH230-06 -06 10 3/8 9.8 0.67 17.1 4785 330 19140 1320 2.6 65 0.466
    PH230-08 -08 12 1/2 13.1 0.80 20.4 3990 275 15950 1100 3.5 90 0.624
    PH230-10 -10 16 5/8 16.3 0.93 23.5 3625 250 14500 1000 3.9 100 0.736
    PH230-12 -12 19 3/4 19.3 1.10 28 3120 215 12470 860 4.7 120 0.932
    PH230-16 -16 25 1 25.9 1.41 35.7 2395 165 9570 660 5.9 150 1.324
    PH230-20 -20 31 1.1/4 32.2 1.73 43.9 1815 125 7250 500 8.3 210 1.750
    PH230-24 -24 38 1.1/2 38.7 1.89 48.0 1450 100 5800 400 9.8 250 1.760
    PH230-32 -32 51 2 51.3 2.43 61.6 1305 50 5220 360 11.8 300 2.300

    imgTemperature Range : Continuous: -40°C to +100°C

    Intermittent : +120°C

    Impulse Cycles : 200,000; Tested upto 400,000 cycles,upto 1"I.D

    *Smooth cover available only upto size 1"
