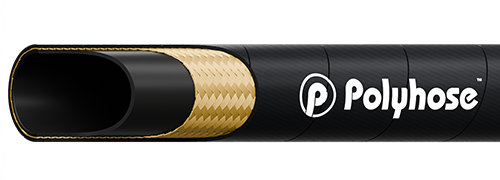

PH237 - 1SNX - HP HIGH TEMPERATURE MSHA
Applicable Standard : Exceeds EN 857
Construction
Inner tube
Black Colour, Synthetic rubber resistant to oil and water
Reinforcement
Single steel wire braid
Cover
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*
Application
Medium Pressure Hydraulic Lines 110 to 290 bar requires compact outer dia and high flexibility for use with petroleum,synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Construction & Material handling equipment and machineries/systems
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH237-04 | -04 | 06 | 1/4 | 6.7 | 0.47 | 12.0 | 4205 | 290 | 16820 | 1160 | 1.6 | 40 | 0.186 |
| PH237-05 | -05 | 08 | 5/16 | 8.2 | 0.55 | 14.0 | 3625 | 250 | 14500 | 1000 | 2.2 | 55 | 0.235 |
| PH237-06 | -06 | 10 | 3/8 | 9.8 | 0.63 | 16.0 | 3335 | 230 | 13340 | 920 | 2.6 | 65 | 0.295 |
| PH237-08 | -08 | 12 | 1/2 | 13.1 | 0.75 | 19.0 | 2900 | 200 | 11600 | 800 | 3.1 | 80 | 0.377 |
| PH237-10 | -10 | 16 | 5/8 | 16.2 | 0.87 | 22.0 | 2175 | 150 | 8700 | 600 | 4.1 | 105 | 0.454 |
| PH237-12 | -12 | 19 | 3/4 | 19.3 | 1.02 | 26.0 | 1815 | 125 | 7250 | 500 | 4.7 | 120 | 0.582 |
| PH237-16 | -16 | 25 | 1 | 25.9 | 1.30 | 33.0 | 1595 | 110 | 6380 | 440 | 6.3 | 160 | 0.804 |
| PH237-20 | -20 | 31 | 1.1/4 | 32.0 | 1.73 | 44.0 | 1450 | 100 | 5800 | 400 | 11.8 | 300 | 1.516 |
Temperature Range : -40°C to +135°C
Impulse Cycles : 1,50,000
*Smooth cover available only upto size 1"
