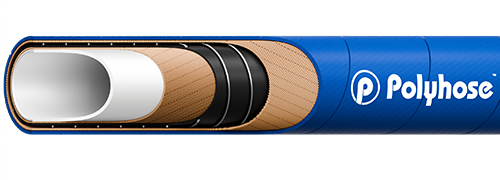

PH645 - UHMWPE CHEMICAL SUCTION & DISCHARGE HOSE
Construction
Inner tube
White colour, Synthetic rubber with transparent UHMWPE liner FDA approved
Reinforcement
Plies of synthetic textile cords with steel helix
Cover
Blue colour EPDM rubber resistant to ozone, weather and abrasion
Application
Conveying acids and chemical with corrugated finish
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
V
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | bar | kg/m | ||
| PH645-12 | -12 | 3/4 | 19.0 | 1.22 | 31.0 | 250 | 17 | 750 | 51 | 0.9 | 0.70 |
| PH645-16 | -16 | 1 | 25.0 | 1.46 | 37.0 | 250 | 17 | 750 | 51 | 0.9 | 1.29 |
| PH645-20 | -20 | 1.1/4 | 32.0 | 1.73 | 44.0 | 250 | 17 | 750 | 51 | 0.9 | 1.49 |
| PH645-24 | -24 | 1.1/2 | 38.0 | 1.97 | 50.0 | 250 | 17 | 750 | 51 | 0.9 | 1.90 |
| PH645-32 | -32 | 2 | 51.0 | 2.48 | 63.0 | 250 | 17 | 750 | 51 | 0.9 | 2.50 |
| PH645-40 | -40 | 2.1/2 | 63.0 | 3.07 | 78.0 | 250 | 17 | 750 | 51 | 0.9 | 3.20 |
| PH645-48 | -48 | 3 | 76.0 | 3.70 | 94.0 | 250 | 17 | 750 | 51 | 0.9 | 4.30 |
| PH645-64 | -64 | 4 | 102.0 | 4.72 | 120.0 | 250 | 17 | 750 | 51 | 0.9 | 4.80 |
| PH645-96 | -96 | 6 | 152.0 | 6.81 | 173.0 | 250 | 17 | 750 | 51 | 0.80 | 10.49 |
| PH645-128 | -128 | 8 | 203.0 | 9.33 | 237.0 | 250 | 17 | 750 | 51 | 0.7 | 19.97 |
Temperature Range : Continuous: -20°C to +120°C
