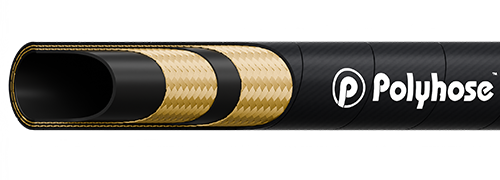

PH522 - SUPER SERVICE HOSE
Applicable Standard : Exceeds EN 857 - 2 SC / EN 1829-2
Construction
Inner tube
Black colour, Synthetic rubber resistant to hot water
Reinforcement
Two high tensile steel wire braid
Cover
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*. Color option Grey, Blue available on request
Application
Cleaning lines for lobby, and semi professional machines. High flexibility for use with minerals, glycols, polyglycols oils, synthetic ester oils, oils in water emlusion
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH522-04 | -04 | 06 | 1/4 | 6.7 | 0.52 | 13.2 | 9425 | 650 | 23200 | 1600 | 3.0 | 75 | 0.326 |
| PH522-05 | -05 | 08 | 5/16 | 8.2 | 0.59 | 14.9 | 7975 | 550 | 20300 | 1400 | 3.3 | 85 | 0.369 |
| PH522-06 | -06 | 10 | 3/8 | 9.8 | 0.67 | 17.0 | 7615 | 525 | 19140 | 1320 | 3.5 | 90 | 0.459 |
| PH522-08 | -08 | 12 | 1/2 | 13.1 | 0.80 | 20.4 | 6380 | 440 | 15950 | 1100 | 5.1 | 130 | 0.626 |
Temperature Range : Continuous: -40°C to +155°C
*Smooth cover available only upto size 1"
