    PH261 - 1TE

    Applicable Standard : EN 854 - 1TE

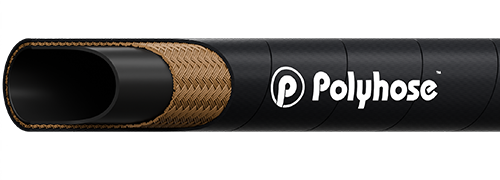

    product img

    Construction

    Inner tube

    Black colour, synthetic rubber resistant to oil and water

    Reinforcement

    Single Textile Braid

    Cover

    Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

    Application

    Very low pressure hydraulic lines 15 to 25 bar for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural, Stationary equipment and hydraulic systems

    Cover Options
    PH261 : MSHA
    Temperature Usage Options
    PH271 : High temperature MSHA cover -40°C to +135°C
    Note : 3/4" & 1"not covered under EN854
    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH261-04 -04 06 1/4 6.6 0.49 12.4 365 25 1450 100 1.8 45 0.131
    PH261-05 -05 08 5/16 8.1 0.55 13.9 290 20 1160 80 2.6 65 0.150
    PH261-06 -06 10 3/8 9.0 0.61 15.5 290 20 1160 80 3.0 75 0.181
    PH261-08 -08 12 1/2 13.0 0.74 18.7 290 20 945 65 3.5 90 0.222
    PH261-10 -10 16 5/8 16.1 0.90 22.9 290 20 945 65 4.5 115 0.327
    PH261-12 -12 19 3/4 19.3 1.04 26.3 220 15 725 50 5.3 135 0.381
    PH261-16 -16 25 1 25.8 1.34 34.0 220 15 725 50 5.9 150 0.643

    imgTemperature Range : Continuous: -40°C to +100°C

    *Smooth cover available only upto size 1"
