PH104 - TRACK SAFE - 2SNX - HP
Applicable Standard : Exceeds SAE 100R16/EN 857 / EN 45545-2

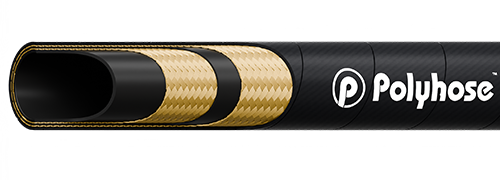

Construction
Inner tube
Synthetic rubber - black resistant to oil and water
Reinforcement
Double steel wire braids
Cover
Synthetic rubber - black resistant to abrasion and weather, oil & ozone.
Application
High performance High Pressure Hydraulic Lines 110 to 290 bar railway hose, for use with petroleum, synthetic or water-based fluids in Hydraulic systems. Hose meets hazard level HL1 & HL2 of R22 & R23. The specific fire-retardant cover minimizes the release of toxic substances & better visibility in case of fire. This compliance is crucial to enhance passenger safety and prevent the spread of fire within railway vehicles.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH104-04 | -04 | 06 | 1/4 | 6.7 | 0.53 | 13.4 | 6525 | 450 | 26100 | 1800 | 1.8 | 45 | 0.299 |
| PH104-05 | -05 | 08 | 5/16 | 8.2 | 0.59 | 15.0 | 6090 | 420 | 24360 | 1680 | 2.4 | 60 | 0.367 |
| PH104-06 | -06 | 10 | 3/8 | 9.8 | 0.69 | 17.4 | 5585 | 385 | 22330 | 1540 | 2.8 | 70 | 0.472 |
| PH104-08 | -08 | 12 | 1/2 | 13.1 | 0.81 | 20.6 | 5005 | 345 | 20010 | 1380 | 3.5 | 90 | 0.618 |
| PH104-10 | -10 | 16 | 5/8 | 16.2 | 0.94 | 24.0 | 4205 | 290 | 16820 | 1160 | 3.9 | 100 | 0.745 |
| PH104-12 | -12 | 19 | 3/4 | 19.3 | 1.09 | 27.7 | 4060 | 280 | 16240 | 1120 | 4.7 | 120 | 0.901 |
| PH104-16 | -16 | 25 | 1 | 25.9 | 1.40 | 35.6 | 2900 | 200 | 11600 | 800 | 8.3 | 210 | 1.261 |
| PH104-20 | -20 | 31 | 1.1/4 | 32.0 | 1.73 | 44.0 | 2540 | 175 | 10150 | 700 | 11.8 | 300 | 1.960 |
Temperature Range : Continuous: -40°C to +100°C
Intermittent : +120°C
Impulse Cycles : 200,000 cycles
