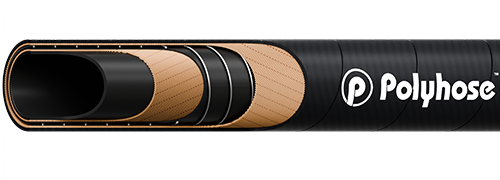

PH646 - EPDM CHEMICAL SUCTION & DISCHARGE HOSE
Construction
Inner tube
Black colour, EPDM synthetic rubber resistant to wide range of industrial chemicals
Reinforcement
Plies of synthetic textile cords with steel helix and two cross anti static copper wires
Cover
Black colour, Synthetic rubber resistant to ozone, weather and abrasion
Application
For conveying wide range of light chemicals
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | kg/m | ||
| PH646-08 | -08 | 1/2 | 12.7 | 0.97 | 24.7 | 250 | 17 | 750 | 51 | 0.56 |
| PH646-12 | -12 | 3/4 | 19.0 | 1.22 | 31.0 | 250 | 17 | 750 | 51 | 0.68 |
| PH646-16 | -16 | 1 | 25.0 | 1.46 | 37.0 | 250 | 17 | 750 | 51 | 0.80 |
| PH646-20 | -20 | 1.1/4 | 32.0 | 1.73 | 44.0 | 250 | 17 | 750 | 51 | 0.99 |
| PH646-24 | -24 | 1.1/2 | 38.0 | 2.05 | 52.0 | 250 | 17 | 750 | 51 | 1.50 |
| PH646-32 | -32 | 2 | 51.0 | 2.64 | 67.0 | 250 | 17 | 750 | 51 | 2.04 |
| PH646-40 | -40 | 2.1/2 | 64.0 | 3.15 | 80.0 | 250 | 17 | 750 | 51 | 2.70 |
| PH646-48 | -48 | 3 | 76.0 | 3.62 | 92.0 | 250 | 17 | 750 | 51 | 3.12 |
| PH646-64 | -64 | 4 | 102.0 | 4.65 | 118.0 | 250 | 17 | 750 | 51 | 4.60 |
Temperature Range : Continuous: -30°C to +120°C
