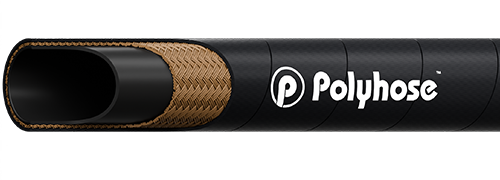

PH532 - FUEL HOSE
Applicable Standard : SAE J30 R2 TYPE 3
Construction
Inner tube
Black colour, Synthetic rubber resistant to oil and fuel
Reinforcement
Single Braid Textile reinforcement
Cover
Black Colour, Synthetic rubber resistant to oil, ozone. Available in Wrap and Smooth finish*
Application
Low Pressure coupled and uncoupled low-permeation Fuel hose for Automotive and allied application, Physical, Extractable and fuel permeation properties as specified in SAE J30 - R2 Type 3 standard for use with gasoline, diesel fuel, lubrication oil, or the vapour present in either fuel system or in crank case of internal combustion engines.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH532-03 | -03 | 05 | 3/16 | 4.8 | 0.41 | 10.5 | 510 | 35 | 2030 | 140 | 2.0 | 50 | 0.094 |
| PH532-04 | -04 | 06 | 1/4 | 6.4 | 0.48 | 12.1 | 435 | 30 | 1670 | 115 | 2.6 | 65 | 0.130 |
| PH532-05 | -05 | 08 | 5/16 | 8.0 | 0.54 | 13.7 | 435 | 30 | 1670 | 115 | 3.0 | 75 | 0.155 |
| PH532-06 | -06 | 10 | 3/8 | 9.5 | 0.60 | 15.3 | 435 | 30 | 1670 | 115 | 3.0 | 75 | 0.183 |
| PH532-08 | -08 | 12 | 1/2 | 12.7 | 0.75 | 19.0 | 435 | 30 | 1670 | 115 | 3.9 | 100 | 0.264 |
| PH532-10 | -10 | 16 | 5/8 | 16.0 | 0.87 | 22.2 | 365 | 25 | 1235 | 85 | 4.9 | 125 | 0.302 |
| PH532-12 | -12 | 19 | 3/4 | 19.0 | 1.09 | 27.8 | 365 | 25 | 1235 | 85 | 5.9 | 150 | 0.372 |
Temperature Range : Continuous: -40°C to +100°C
*Smooth cover available only upto size 1"
