PH229 - R19 HARD - X MSHA
Applicable Standard : SAE J517 - 100R19

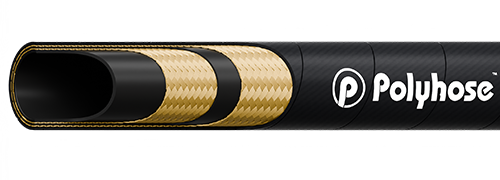

Construction
Inner tube
Black colour, synthetic rubber resistant to oil and water
Reinforcement
Single or Double steel wire braids
Cover
Hard-X Black, Extra abrasion, oil, ozone resistant synthetic rubber. Available in Wrap and Smooth finish*
Application
Compact constant pressure hydraulic lines 280 bar for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & Material handling equipments / systems
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH229-04 | -04 | 06 | 1/4 | 6.7 | 0.47 | 12.0 | 4060 | 280 | 16240 | 1120 | 2.0 | 50 | 0.186 |
| PH229-05 | -05 | 08 | 5/16 | 8.2 | 0.59 | 14.9 | 4060 | 280 | 16240 | 1120 | 2.2 | 55 | 0.366 |
| PH229-06 | -06 | 10 | 3/8 | 9.8 | 0.67 | 17.1 | 4060 | 280 | 16240 | 1120 | 2.6 | 65 | 0.466 |
| PH229-08 | -08 | 12 | 1/2 | 13.1 | 0.80 | 20.4 | 4060 | 280 | 16240 | 1120 | 3.5 | 90 | 0.624 |
| PH229-10 | -10 | 16 | 5/8 | 16.2 | 0.94 | 24.0 | 4060 | 280 | 16240 | 1120 | 3.9 | 100 | 0.745 |
| PH229-12 | -12 | 19 | 3/4 | 19.3 | 1.09 | 27.7 | 4060 | 280 | 16240 | 1120 | 4.7 | 120 | 0.901 |
Temperature Range : Continuous: -40°C to +100°C
Intermittent : +121°C
Impulse Cycles : 200,000 cycles
*Smooth cover available only upto size 1"
