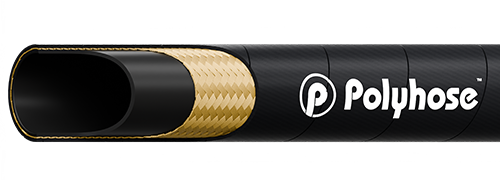

PH139 - TRACK SAFE - 1SNX - HP
Applicable Standard : Exceeds EN 857 / EN 45545-2
Construction
Inner tube
Synthetic rubber - black resistant to oil and water
Reinforcement
Single steel wire braid
Cover
Synthetic rubber resistant to abrasion, weather, oil & ozone.
Application
High performance Medium Pressure Hydraulic Lines 110 to 290 bar railway hose for use with petroleum, synthetic or water based fluids in Hydraulic systems. Hose meets hazard level HL1 & HL2 of R22 & R23. The specific fire-retardant cover minimizes the release of toxic substances & better visibility in case of fire. This compliance is crucial to enhance passenger safety and prevent the spread of fire within railway vehicles.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH139-04 | -04 | 06 | 1/4 | 6.7 | 0.47 | 12.0 | 4205 | 290 | 16820 | 1160 | 1.6 | 40 | 0.186 |
| PH139-05 | -05 | 08 | 5/16 | 8.2 | 0.55 | 14.0 | 3625 | 250 | 14500 | 1000 | 2.2 | 55 | 0.235 |
| PH139-06 | -06 | 10 | 3/8 | 9.8 | 0.63 | 16.0 | 3335 | 230 | 13340 | 920 | 2.6 | 65 | 0.295 |
| PH139-08 | -08 | 12 | 1/2 | 13.1 | 0.75 | 19.0 | 2900 | 200 | 11600 | 800 | 3.1 | 80 | 0.377 |
| PH139-10 | -10 | 16 | 5/8 | 16.2 | 0.87 | 22.0 | 2175 | 150 | 8700 | 600 | 4.1 | 105 | 0.454 |
| PH139-12 | -12 | 19 | 3/4 | 19.3 | 1.02 | 26.0 | 1815 | 125 | 7250 | 500 | 4.7 | 120 | 0.582 |
| PH139-16 | -16 | 25 | 1 | 25.9 | 1.30 | 33.0 | 1595 | 110 | 6380 | 440 | 6.3 | 160 | 0.804 |
| PH139-20 | -20 | 31 | 1.1/4 | 32.0 | 1.73 | 44.0 | 1450 | 100 | 5800 | 400 | 11.8 | 300 | 1.516 |
Temperature Range : Continuous: -40°C to +100°C
Intermittent : +120°C
Impulse Cycles : 150,000 cycles
*Smooth cover available only upto size 1"
