    PH624 - SHOT BLASTING HOSE W.P. 12 BAR - PH2

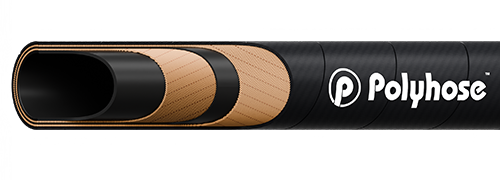

    product img

    Construction

    Inner tube

    Black colour, Synthetic and natural rubber blend resistant to abrasion

    Reinforcement

    Plies of synthetic textile cords with two cross antistatic copper wires

    Cover

    Black colour, Synthetic rubber resistant to ozone, weather and abrasion

    Application

    Suitably designed long lasting heavy duty hose for use in sand, metal grits and foundry waste with conductive rubber compound to ensure static electricity dissipation abrasion loss of the tube according to ISO 4649: 50+5mm3

    Cover Options
    PH674-PH1 : Premium abrasion
    Item
    Code    		 Dash
    Size
    ID
    OD
    OD
    WP
    BP
    W
    inch mm inch mm psi bar psi bar kg/m
    PH624-08 -08 1/2 12.7 1.06 27.0 175 12 525 36 0.61
    PH624-12 -12 3/4 19.0 1.34 34.0 175 12 525 36 0.80
    PH624-16 -16 1 25.0 1.57 40.0 175 12 525 36 0.97
    PH624-20 -20 1.1/4 32.0 1.89 48.0 175 12 525 36 1.32
    PH624-24 -24 1.1/2 38.0 2.13 54.0 175 12 525 36 1.45
    PH624-32 -32 2 51.0 2.87 73.0 175 12 525 36 2.20
    PH624-40 -40 2.1/2 64.0 3.35 85.0 175 12 525 36 3.26
    PH624-48 -48 3 76.0 3.94 100.0 175 12 525 36 3.90
    PH624-64 -64 4 102.0 4.96 126.0 175 12 525 36 4.40

    imgTemperature Range : Continuous: -30°C to +70°C
