    PH255 - R1AT / 1SN HIGH TEMPERATURE MSHA

    Applicable Standard : SAE J517-100R1AT / EN 853-1SN / ISO 1436

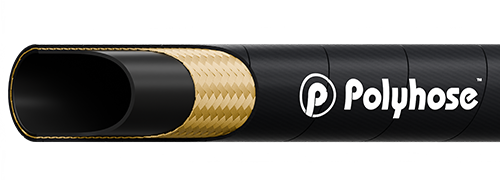

    product img

    Construction

    Inner tube

    Black Color, Synthetic rubber resistant to oil and water

    Reinforcement

    Single steel wire braid

    Cover

    Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

    Application

    Medium Pressure Hydraulic Lines 10 to 250 bar. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agriculture, Earthmoving & Material handling equipment and machineries/systems

    Note : Sizes 2-1/2" to 4" are not covered under SAE J517-100R1AT/EN 853-1SN
    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH255-03 -03 05 3/16 5.1 0.45 11.5 3625 250 14500 1000 3.5 90 0.205
    PH255-04 -04 06 1/4 6.7 0.52 13.1 3265 225 13050 900 3.9 100 0.262
    PH255-05 -05 08 5/16 8.2 0.58 14.7 3120 215 12470 860 4.5 115 0.283
    PH255-06 -06 10 3/8 9.8 0.67 17.1 2610 180 10440 720 4.9 125 0.383
    PH255-08 -08 12 1/2 13.1 0.80 20.2 2320 160 9280 640 7.1 180 0.438
    PH255-10 -10 16 5/8 16.2 0.92 23.3 1885 130 7540 520 7.9 200 0.536
    PH255-12 -12 19 3/4 19.3 1.07 27.3 1525 105 6090 420 9.4 240 0.675
    PH255-16 -16 25 1 25.9 1.39 35.3 1305 90 5150 355 11.8 300 1.008
    PH255-20 -20 31 1.1/4 32.4 1.69 43.0 945 65 3700 255 16.5 420 1.443
    PH255-24 -24 38 1.1/2 38.7 1.97 50.1 725 50 2900 200 19.7 500 1.735
    PH255-32 -32 51 2 51.3 2.50 63.4 580 40 2320 160 24.8 630 2.352
    PH255-40 -40 63 2.1/2 63.5 2.99 76.0 580 40 2105 145 29.9 760 2.640
    PH255-48 -48 76 3 76.2 3.56 90.5 510 35 2030 140 35.4 900 3.798
    PH255-64 -64 100 4 101.6 4.61 117.0 145 10 580 40 46.1 1170 4.928

    imgTemperature Range : -40°C to +135°C

    Impulse Cycles : 150,000; Tested upto 300,000 cycles, upto 1" I.D

    *Smooth cover available only upto size 1"
