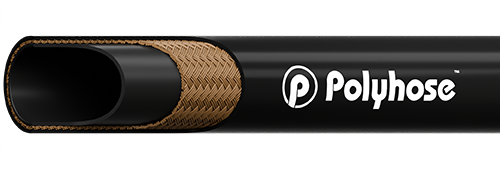

PH566 - AIR BREATHING HOSE
Applicable Standard : EN14593/14594
Construction
Inner tube
Black colour, EPDM rubber
Reinforcement
Single textile braid
Cover
Black colour, EPDM rubber smooth finish perforated cover. Available in Wrap and Smooth finish*
Application
Hose used in compressed air lines for carrying breathing air at high pressure from compressor to filter. Good ozone, heat & external resistance to several chemicals
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH566-04 | -4 | 6 | 1/4 | 6.4 | 0.61 | 15.4 | 510 | 35 | 2030 | 140 | 4.48 | 65 | 0.246 |
| PH566-06 | -6 | 10 | 3/8 | 9.5 | 0.73 | 18.5 | 510 | 35 | 2030 | 140 | 5.17 | 75 | 0.301 |
| PH566-08 | -8 | 12 | 1/2 | 12.7 | 0.84 | 21.3 | 510 | 35 | 2030 | 140 | 6.90 | 100 | 0.350 |
Temperature Range : Continuous: -40°C to +120°C
Electrical resistance max : 103Ω /m<R<108Ω /m
*Smooth cover available only upto size 1"
