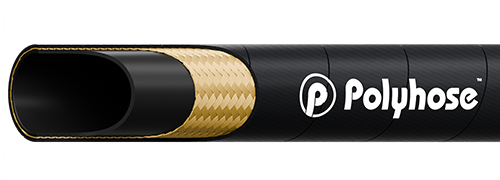

PH294 - R17 ABRAZON - X MSHA
Applicable Standard : SAE J517 - 100R17
Construction
Inner tube
Black Colour, Synthetic rubber resistant to oil and water
Reinforcement
Single or Double steel wire braids
Cover
Abrazon-X Black, Exceptionally abrasion, oil, ozone resistant synthetic rubber sheathed with layer of UHMW-PE foil.
Application
Constant Pressure Hydraulic Lines 210 bar and requires half bend radius for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Construction & Material handling equipment and machineries/systems
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH294-04 | -04 | 06 | 1/4 | 6.6 | 0.50 | 12.8 | 3045 | 210 | 12180 | 840 | 2.0 | 50 | 0.218 |
| PH294-05 | -05 | 08 | 5/16 | 8.1 | 0.56 | 14.3 | 3045 | 210 | 12180 | 840 | 2.2 | 55 | 0.253 |
| PH294-06 | -06 | 10 | 3/8 | 9.7 | 0.64 | 16.3 | 3045 | 210 | 12180 | 840 | 2.6 | 65 | 0.303 |
| PH294-08 | -08 | 12 | 1/2 | 12.9 | 0.80 | 20.3 | 3045 | 210 | 12180 | 840 | 3.5 | 90 | 0.446 |
| PH294-10 | -10 | 16 | 5/8 | 16.1 | 0.93 | 23.5 | 3045 | 210 | 12180 | 840 | 3.9 | 100 | 0.736 |
| PH294-12 | -12 | 19 | 3/4 | 19.2 | 1.10 | 28.0 | 3045 | 210 | 12180 | 840 | 4.7 | 120 | 0.932 |
| PH294-16 | -16 | 25 | 1 | 25.7 | 1.48 | 37.5 | 3045 | 210 | 12180 | 840 | 5.9 | 150 | 1.614 |
Temperature Range : Continuous: -40°C to +100°C
Intermittent : +120°C
Impulse Cycles : 200,000 cycles
