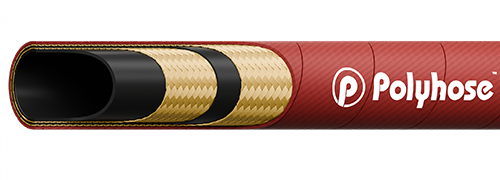

    PH472 - STEAM 2 W/B

    Applicable Standard : Exceeds IS 10655 TYPE 3/ ISO 6134 TYPE 2A/ BS 5342 TYPE 2A

    product img

    Construction

    Inner tube

    Black colour, EPDM rubber resistant to high temperature steam

    Reinforcement

    Double steel wire Braids

    Cover

    Red Colour, EPDM rubber resistant to heat and weather. Black colour option available on request

    Application

    High temperature steam Lines at constant pressure of 290 psi

    Cover Options
    PH482 : Oil resistance outer cover conforms ISO 6134 Type 2B/BS 5342 Type 2B
    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH472-06 -06 10 3/8 10.0 0.77 19.5 260 18 2610 180 5.1 130 0.421
    PH472-08 -08 12 1/2 12.5 0.91 23.0 260 18 2610 180 5.9 150 0.589
    PH472-12 -12 19 3/4 19.0 1.18 30.0 260 18 2610 180 9.1 230 0.846
    PH472-16 -16 25 1 25.4 1.45 36.8 260 18 2610 180 11.8 300 1.095
    PH472-20 -20 32 1.1/4 31.5 1.71 43.5 260 18 2610 180 14.8 375 1.505
    PH472-24 -24 38 1.1/2 38.0 1.95 49.5 260 18 2610 180 17.9 455 1.780
    PH472-32 -32 51 2 51.0 2.52 64.0 260 18 2610 180 23.6 600 2.261
    PH472-40 -40 63 2.1/2 63.0 3.27 83.0 260 18 2610 180 26.6 675 4.214
    PH472-48 -48 76 3 76.0 3.86 98.0 260 18 2610 180 28.5 725 4.962

    imgTemperature Range : Continuous: Up to +230°C Steam
