PH132 - TRACK SAFE - R12

Applicable Standard : SAE J517 - 100R12 / EN 856 - R12 / ISO 3862 / EN 45545-2

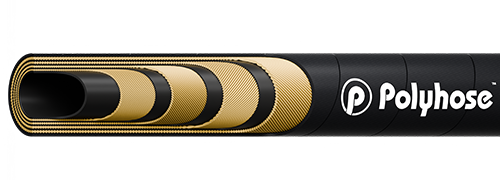

product img

Construction

Inner tube

Synthetic rubber - black resistant to oil and water

Reinforcement

Four high tensile steel wire spiral

Cover

Synthetic rubber - black resistant to abrasion, weather, oil & ozone

Application

Heavy duty high temperature medium pressure hydraulic lines 175 to 280 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving, Material handling equipment and machineries / systems. Hose meets hazard level HL1 & HL2 of R22 & R23. The specific fire-retardant cover minimizes the release of toxic substances & better visibility in case of fire. This compliance is crucial to enhance passenger safety and prevent the spread of fire within railway vehicles.

Item
Code		 Dash
Size		 DN
ID
RI OD
OD
OD
WP
BP
BR/r
W
inch mm inch mm inch mm psi bar psi bar inch mm kg/m
PH132-06 -06 10 3/8 9.7 0.68 17.2 0.80 20.3 4060 280 16240 1120 2.52 64 0.660
PH132-08 -08 12 1/2 12.9 0.82 20.9 0.94 23.8 4060 280 16240 1120 3.50 89 0.852
PH132-10 -10 16 5/8 16.1 0.96 24.5 1.08 27.4 4060 280 16240 1120 4.01 102 1.059
PH132-12 -12 19 3/4 19.2 1.10 28.0 1.21 30.7 4060 280 16240 1120 4.76 121 1.134
PH132-16 -16 25 1 25.7 1.37 34.9 1.50 38.0 4060 280 16240 1120 6.02 153 1.980
PH132-20 -20 31 1.1/4 32.2 1.73 43.9 1.85 47.0 3045 210 12180 840 8.27 210 2.822
PH132-24 -24 38 1.1/2 38.5 1.98 50.4 2.11 53.5 2540 175 10150 700 10.00 254 3.229
PH132-32 -32 51 2 51.4 2.50 63.6 2.63 66.7 2540 175 10150 700 12.52 318 4.622
PH132-40 -40 63 2.1/2 63.5 2.95 75.0 3.07 78.0 2030 140 8120 560 14.20 360 5.285

imgTemperature Range : Continuous: -40°C to +121°C

Impulse Cycles : 500,000 cycles
