    PH441 - COMPRESSED AIR WIRE BRAIDED HOSE MSHA

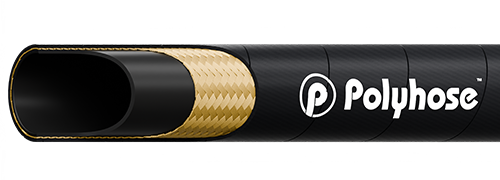

    product img

    Construction

    Inner tube

    Black colour, Synthetic rubber resistant to air

    Reinforcement

    Single steel wire braid

    Cover

    Black colour, Synthetic rubber resistant to water. Also available in blue cover on request.

    Application

    Compressed air service in severe working conditions in mines, quarries and industrial applications

    Note : 1/2” to 2” - one wire braid, 21/2” to 4” - two wire braided
    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH441-08 -08 12 1/2 13.1 0.79 20.0 580 40 1740 120 7.9 200 0.365
    PH441-12 -12 19 3/4 19.3 1.06 27.0 580 40 1740 120 9.4 240 0.520
    PH441-16 -16 25 1 25.9 1.40 35.5 580 40 1740 120 11.8 300 0.821
    PH441-20 -20 32 1.1/4 32.4 1.65 42.0 580 40 1740 120 16.5 420 1.114
    PH441-24 -24 38 1.1/2 38.7 2.04 51.7 580 40 1740 120 19.7 500 1.529
    PH441-32 -32 51 2 51.3 2.48 63.0 580 40 1740 120 24.8 630 2.058
    PH441-40 -40 63 2.1/2 63.5 3.15 80.0 580 40 1740 120 30.0 762 4.196
    PH441-48 -48 76 3 76.2 3.74 95.0 580 40 1740 120 36.0 915 5.394
    PH441-64 -64 100 4 101.6 4.67 118.5 580 40 1740 120 48.0 1220 6.110

    imgTemperature Range : Continuous: -40°C to +150°C
