PH443 - FUEL DISPENSING - SOFT WALL
Applicable Standard : EN 1360 Type 1

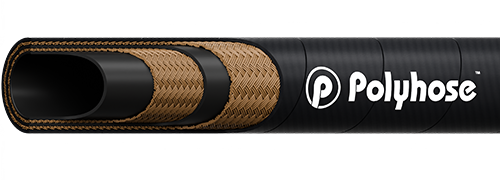

Construction
Inner tube
Black colour, Synthetic rubber resistant to petrol and diesel fuel
Reinforcement
- Double Textile braid
Cover
Black Colour, synthetic rubber resistant to fuel and weather. Available in Wrap and Smooth finish*, Colour option Blue and Green available on request.
Application
Petrol and diesel fuel dispensing lines of pressure 235 psi
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH443-08 | -08 | 12 | 1/2 | 12.5 | 0.91 | 23.0 | 235 | 16 | 700 | 48 | 2.4 | 60 | 0.385 |
| PH443-10 | -10 | 16 | 5/8 | 16.0 | 1.02 | 26.0 | 235 | 16 | 700 | 48 | 3.1 | 80 | 0.396 |
| PH443-12 | -12 | 19 | 3/4 | 19.0 | 1.14 | 29.0 | 235 | 16 | 700 | 48 | 3.9 | 100 | 0.450 |
| PH443-13 | -13 | 21 | 7/8 | 22.0 | 1.22 | 31.0 | 235 | 16 | 700 | 48 | 5.1 | 130 | 0.565 |
| PH443-16 | -16 | 25 | 1 | 25.0 | 1.38 | 35.0 | 235 | 16 | 700 | 48 | 5.9 | 150 | 0.571 |
Temperature Range : Continuous: -30°C to +55°C
Electrical resistance max : 1 X 10² ohms
*Smooth cover available only upto size 1"
