    PH554 - R2AT / 2SN LOW TEMPERATURE

    Applicable Standard : SAE J517-100R2AT / EN 853-2SN / ISO 1436

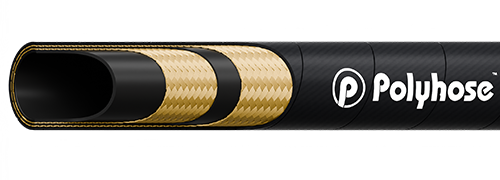

    product img

    Construction

    Inner tube

    Black Colour, Synthetic rubber resistant to oil and water

    Reinforcement

    Double steel wire braids

    Cover

    Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

    Application

    High Pressure Hydraulic Lines 50 to 415 bar. For use with petroleum,synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural,Earthmoving & Material handling equipment and machineries/systems

    Note : Sizes 3" to 4" are not covered under SAE J517-100R1AT/EN 853-2SN
    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH554-03 -03 05 3/16 5.1 0.52 13.1 6020 415 24070 1660 3.5 90 0.319
    PH554-04 -04 06 1/4 6.7 0.58 14.7 5800 400 23200 1600 3.9 100 0.386
    PH554-05 -05 08 5/16 8.2 0.64 16.3 5075 350 20300 1400 4.5 115 0.458
    PH554-06 -06 10 3/8 9.8 0.74 18.7 4785 330 19140 1320 4.9 125 0.590
    PH554-08 -08 12 1/2 13.1 0.86 21.8 3990 275 15950 1100 7.1 180 0.679
    PH554-10 -10 16 5/8 16.2 0.98 25.0 3625 250 14500 1000 7.9 200 0.825
    PH554-12 -12 19 3/4 19.3 1.14 28.9 3120 215 12470 860 9.4 240 1.009
    PH554-16 -16 25 1 25.9 1.48 37.5 2395 165 9570 660 11.8 300 1.457
    PH554-20 -20 31 1.1/4 32.4 1.87 47.6 1815 125 7250 500 16.5 420 2.272
    PH554-24 -24 38 1.1/2 38.7 2.13 54.0 1305 90 5220 360 19.7 500 2.620
    PH554-32 -32 51 2 51.3 2.63 66.7 1160 80 4640 320 24.8 630 3.381
    PH554-40 -40 63 2.1/2 63.5 3.15 80.0 1015 70 4060 280 29.9 760 4.443
    PH554-48 -48 76 3 76.2 3.68 93.4 800 55 3190 220 35.4 900 5.459
    PH554-64 -64 100 4 101.6 4.67 118.5 725 50 2900 200 46.5 1180 5.887

    imgTemperature Range : -55°C to +100°C

    *Smooth cover available only upto size 1"
