    PH283 - WATER BLAST 50

    product img

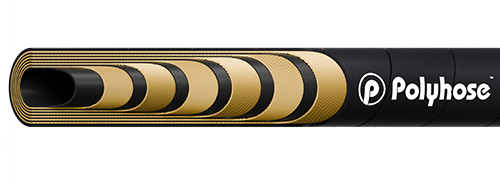

    Construction

    Inner tube

    Black colour, Synthetic rubber resistant to oil and water

    Reinforcement

    • Six high tensile steel wire spirals

    Cover

    Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone

    Application

    Water blasting, Water jetting, cleaning equipment. Delivery of water and water emulsions

    Cover Options
    PH283 : MSHA
    Item
    Code    		 Dash
    Size    		 DN
    ID
    RI OD
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm inch mm psi bar psi bar inch mm kg/m
    PH283-08 -08 12 1/2 12.7 1.02 26.0 1.13 28.6 20010 1380 50025 3450 9.1 230 2.02
    PH283-12 -12 19 3/4 19.0 1.31 33.3 1.40 35.8 20010 1380 50025 3450 11.0 280 3.05

    imgTemperature Range : Continuous: -40°C to +90°C
