    PH245 - HYDRAULIC OIL S & D HOSE

    Applicable Standard : SAE J517 - 100R4

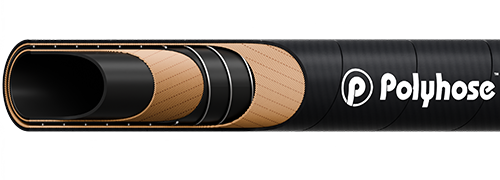

    product img

    Construction

    Inner tube

    Black colour, synthetic rubber resistant to oil

    Reinforcement

    Synthetic Yarn fabric with Steel Wire Helix

    Cover

    Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone.

    Application

    For suction return line of Hydraulic Oil in Industrial and Earthmoving Equipment

    Cover Options
    PH245 : MSHA
    Temperature Usage Options
    PH185 : High temperature MSHA cover -40°C to +135°C
    Note : 1.3/4"not covered under SAE 100R4
    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH245-12 -12 19 3/4 19.0 1.18 30.0 365 25 1235 85 2.56 65 0.605
    PH245-16 -16 25 1 25.0 1.50 38.0 290 20 1015 70 2.95 75 0.820
    PH245-20 -20 31 1.1/4 32.0 1.77 45.0 220 15 870 60 4.13 105 1.100
    PH245-24 -24 38 1.1/2 38.0 2.05 52.0 220 15 655 45 4.92 125 1.310
    PH245-28 -28 44 1.3/4 45.0 2.20 56.0 145 10 435 30 5.91 150 1.420
    PH245-32 -32 51 2 51.0 2.50 63.6 145 10 435 30 5.91 150 1.590
    PH245-40 -40 63 2.1/2 64.0 3.00 76.2 75 5 290 20 7.09 180 2.400
    PH245-48 -48 76 3 76.0 3.54 90.0 75 5 290 20 9.45 240 2.830
    PH245-56 -56 89 3.1/2 89.0 4.05 103.0 75 5 290 20 10.24 260 3.500
    PH245-64 -64 100 4 102.0 4.57 116.0 75 5 145 10 11.81 300 4.120

    imgTemperature Range : Continuous: -40°C to +100°C

    Vacuum : -0.9 bar
