    PH513 - PW 3K - 1 WB

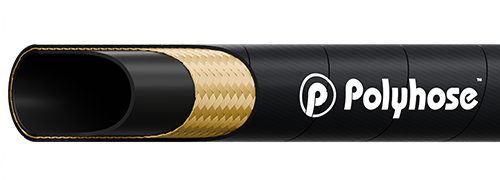

    product img

    Construction

    Inner tube

    Black colour, synthetic rubber resistant to hot water

    Reinforcement

    Single steel wire braid

    Cover

    Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

    Application

    For pressure washer applications with a maximum pressure of 210 Bar. For cold and hot water up to 155 °C

    Note : Also Available in Blue and Grey colour Covers on request, Not suitable for steam and oil applications
    Item
    Code
    Dash
    Size
    DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH513-04 -04 06 1/4 6.7 0.47 12.0 3000 210 9000 630 1.4 35 0.194
    PH513-05 -05 08 5/16 8.2 0.55 13.6 3000 210 9000 630 2.6 65 0.231
    PH513-06 -06 10 3/8 9.8 0.63 16.0 3000 210 9000 630 3.0 75 0.297
    PH513-08 -08 12 1/2 13.1 0.79 19.6 3000 210 9000 630 3.9 100 0.411

    imgTemperature Range : Continuous: -10°C to +155°C

    *Smooth cover available only upto size 1"
