    PH597 - 2SNX - HP HARD-X MSHA

    Applicable Standard : Exceeds SAE 100R16/EN 857

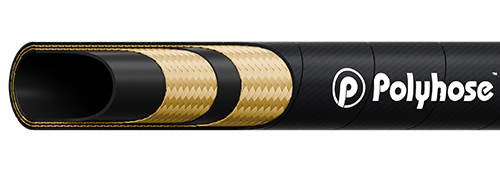

    product img

    Construction

    Inner tube

    Black Colour, Synthetic rubber resistant to oil and water

    Reinforcement

    Double steel wire braids

    Cover

    Hard-X Black, extra abrasion, oil, ozone resistant synthetic rubber. Available in Wrap and Smooth finish*

    Application

    High Pressure Hydraulic Lines 175 to 450 bar and requires compact outer dia and high flexibility for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving & Material handling equipment and machineries/systems

    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH597-04 -04 06 1/4 6.7 0.53 13.4 6525 450 26100 1800 1.8 45 0.299
    PH597-05 -05 08 5/16 8.2 0.59 15.0 6090 420 24360 1680 2.4 60 0.367
    PH597-06 -06 10 3/8 9.8 0.69 17.4 5585 385 22330 1540 2.8 70 0.472
    PH597-08 -08 12 1/2 13.1 0.81 20.6 5005 345 20010 1380 3.5 90 0.618
    PH597-10 -10 16 5/8 16.2 0.94 24.0 4205 290 16820 1160 3.9 100 0.745
    PH597-12 -12 19 3/4 19.3 1.09 27.7 4060 280 16240 1120 4.7 120 0.901
    PH597-16 -16 25 1 25.9 1.40 35.6 2900 200 11600 800 8.3 210 1.261
    PH597-20 -20 31 1.1/4 32.0 1.73 44.0 2540 175 10150 700 11.8 300 1.960

    imgTemperature Range : Continuous: -40°C to +100°C

    Intermittent : +120°C

    Impulse Cycles : 200,000 cycles

    *Smooth cover available only upto size 1"
