    PH175 - JACK HOSE

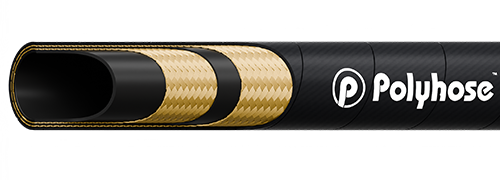

    product img

    Construction

    Inner tube

    Black colour, synthetic rubber resistant to oil & water

    Reinforcement

    Double wire Braids

    Cover

    Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

    Application

    Hydraulic jacking system with petroleum and water based fluids. 10,000 PSI Static Pressure Only

    Cover Options
    PH125 : HARDX MSHA
    PH175 : MSHA
    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH175-04 -04 06 1/4 6.4 0.52 13.2 10150 700 20300 1400 2.0 50 0.323
    PH175-06 -06 10 3/8 9.5 0.69 17.4 10150 700 20300 1400 2.8 70 0.472
    PH175-08 -08 12 1/2 13.0 0.86 21.8 10150 700 20300 1400 7.1 180 0.695

    imgTemperature Range : Continuous: -40°C to +100°C

    *Smooth cover available only upto size 1"
