    PH186 - R5C XT

    Applicable Standard : Exceeds SAE J517 - 100R5

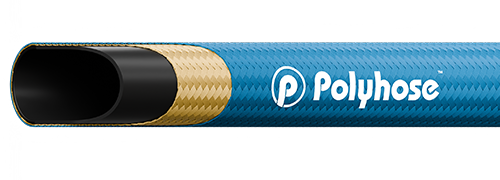

    product img

    Construction

    Inner tube

    Black colour, synthetic rubber resistant to oil

    Reinforcement

    Single steel wire braid

    Cover

    Blue polyester braid cover

    Application

    Medium pressure hydraulic lines 25 to 210 bar for use with hydraulic handling petroleum based fluids and air, gasoline, fuel and lubricating oils, fire resistant hydraulic fluids & other industrial fluids

    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH186-04 -04 05 3/16 4.8 0.52 13.2 3045 210 12180 840 2.99 76 0.209
    PH186-05 -05 06 1/4 6.4 0.58 14.7 3045 210 12180 840 3.39 86 0.264
    PH186-06 -06 08 5/16 7.9 0.68 17.3 2320 160 9280 640 4.02 102 0.297
    PH186-08 -08 10 13/32 10.4 0.77 19.6 2030 140 8120 560 4.61 117 0.352
    PH186-10 -10 12 1/2 12.7 0.92 23.4 1815 125 7250 500 5.51 140 0.539
    PH186-12 -12 16 5/8 16.0 1.08 27.4 1525 105 6090 420 6.5 165 0.638
    PH186-16 -16 22 7/8 22.4 1.23 31.2 870 60 3480 240 7.36 187 0.605
    PH186-20 -20 30 1.1/8 28.4 1.50 38.2 655 45 2610 180 8.98 228 0.748
    PH186-24 -24 35 1.3/8 35.1 1.75 44.5 510 35 2030 140 10.47 266 1.012
    PH186-32 -32 45 1.13/16 46.0 2.22 56.4 365 25 1450 100 13.23 336 1.408
    PH186-40 -40 60 2.3/8 60.1 2.88 73.2 365 25 1450 100 23.98 609 2.321

    imgTemperature Range : Continuous: -40°C to +150°C , Air not to exceed: +121°C, Use with biodiesel not to exceed +100°C
