PH507 - 2SNX - HP LOW TEMPERATURE
Applicable Standard : Exceeds SAE 100R16/EN 857

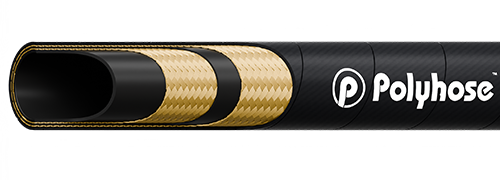

Construction
Inner tube
Black Colour, Synthetic rubber resistant to oil and water
Reinforcement
Double steel wire braids
Cover
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*
Application
High Pressure Hydraulic Lines 175 to 450 bar and requires compact outer dia and high flexibility for use with petroleum,synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving & Material handling equipment and machineries/systems
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH507-04 | -04 | 06 | 1/4 | 6.7 | 0.53 | 13.4 | 6525 | 450 | 26100 | 1800 | 1.8 | 45 | 0.299 |
| PH507-05 | -05 | 08 | 5/16 | 8.2 | 0.59 | 15.0 | 6090 | 420 | 24360 | 1680 | 2.4 | 60 | 0.367 |
| PH507-06 | -06 | 10 | 3/8 | 9.8 | 0.69 | 17.4 | 5585 | 385 | 22330 | 1540 | 2.8 | 70 | 0.472 |
| PH507-08 | -08 | 12 | 1/2 | 13.1 | 0.81 | 20.6 | 5005 | 345 | 20010 | 1380 | 3.5 | 90 | 0.618 |
| PH507-10 | -10 | 16 | 5/8 | 16.2 | 0.94 | 24.0 | 4205 | 290 | 16820 | 1160 | 3.9 | 100 | 0.745 |
| PH507-12 | -12 | 19 | 3/4 | 19.3 | 1.09 | 27.7 | 4060 | 280 | 16240 | 1120 | 4.7 | 120 | 0.901 |
| PH507-16 | -16 | 25 | 1 | 25.9 | 1.40 | 35.6 | 2900 | 200 | 11600 | 800 | 8.3 | 210 | 1.261 |
| PH507-20 | -20 | 31 | 1.1/4 | 32.0 | 1.73 | 44.0 | 2540 | 175 | 10150 | 700 | 11.8 | 300 | 1.960 |
Temperature Range : Continuous: -55°C to +100°C
*Smooth cover available only upto size 1"
