    PH293 - R17

    Applicable Standard : SAE J517 - 100R17

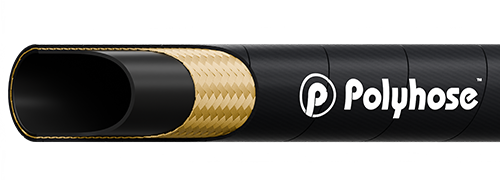

    product img

    Construction

    Inner tube

    Black Colour, Synthetic rubber resistant to oil and water

    Reinforcement

    Single or Double steel wire braids

    Cover

    Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

    Application

    Constant Pressure Hydraulic Lines 210 bar and requires half bend radius for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Construction & Material handling equipment and machineries/systems

    Cover Options
    PH293 : MSHA
    PH198 : HARDX MSHA
    PH294 : ABRAZONX MSHA
    Temperature Usage Options
    PH593 : High temperature MSHA cover -40°C to +135°C
    PH594 : Ultra High temperature MSHA cover -40°C to +150°C
    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    Packaging
    inch mm inch mm psi bar psi bar inch mm kg/m
    Qty (ft)
    Type
    No of
    sections
    PH293-04 -04 06 1/4 6.6 0.50 12.8 3045 210 12180 840 2.0 50 0.218 Reel 3
    PH293-05 -05 08 5/16 8.1 0.56 14.3 3045 210 12180 840 2.2 55 0.253
    PH293-06 -06 10 3/8 9.7 0.64 16.3 3045 210 12180 840 2.6 65 0.303 Reel 3
    PH293-08 -08 12 1/2 12.9 0.80 20.3 3045 210 12180 840 3.5 90 0.446 Reel 3
    PH293-10 -10 16 5/8 16.1 0.93 23.5 3045 210 12180 840 3.9 100 0.736 Reel 3
    PH293-12 -12 19 3/4 19.2 1.10 28.0 3045 210 12180 840 4.7 120 0.932 Reel 3
    PH293-16 -16 25 1 25.7 1.48 37.5 3045 210 12180 840 5.9 150 1.614 Reel 3

    Packaging Dimensions

    Core Flange Height
    6" 22" 13"

    imgTemperature Range : Continuous: -40°C to +100°C

    Intermittent : +120°C

    Impulse Cycles : 200,000 cycles

    *Smooth cover available only upto size 1"
