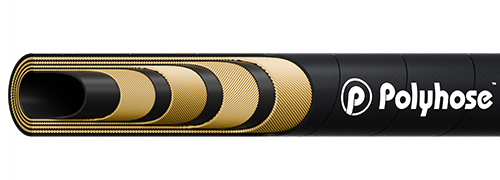

    PH282 - WATER BLAST 45

    product img

    Construction

    Inner tube

    Black colour, Synthetic rubber resistant to oil and water

    Reinforcement

    • Four high tensile steel wire spirals

    Cover

    Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone

    Application

    Water blasting, Water jetting, cleaning equipment. Delivery of water and water emulsions

    Cover Options
    PH282 : MSHA
    Item
    Code    		 Dash
    Size    		 DN
    ID
    RI OD
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm inch mm psi bar psi bar inch mm kg/m
    PH282-06 -06 10 3/8 9.5 0.71 18.0 0.81 20.6 18125 1250 45315 3125 6.1 155 0.967
    PH282-08 -08 12 1/2 12.7 0.63 23.4 1.14 29.0 18125 1250 45315 3125 9.1 230 2.048

    imgTemperature Range : Continuous: -40°C to +90°C
