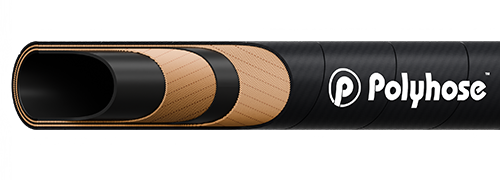

PH690 - AVIATION FUEL HOSE
Applicable Standard : EI 1529 Type - C / ISO 1825 Type - C
Construction
Inner tube
Black Colour, Synthetic rubber resistant to oil
Reinforcement
Plies of synthetic textile cords
Cover
Black colour, synthetic conductive cover resistant to oil, ozone and abrasion
Application
Aircraft fuelling with jet fuels. Portability, ease of routing and ease of of installation area additional virtues.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH690-12 | -12 | 19 | 3/4 | 19.0 | 1.38 | 35.0 | 300 | 20 | 1200 | 80 | 3.5 | 90 | 0.800 |
| PH690-16 | -16 | 25 | 1 | 25.4 | 1.63 | 41.5 | 300 | 20 | 1200 | 80 | 4.5 | 115 | 1.000 |
| PH690-20 | -20 | 32 | 1.1/4 | 32.0 | 1.89 | 48.0 | 300 | 20 | 1200 | 80 | 5.5 | 140 | 1.300 |
| PH690-24 | -24 | 38 | 1.1/2 | 38.0 | 2.19 | 55.5 | 300 | 20 | 1200 | 80 | 7.1 | 180 | 1.830 |
| PH690-32 | -32 | 50 | 2 | 51.0 | 2.66 | 67.5 | 300 | 20 | 1200 | 80 | 8.5 | 215 | 2.580 |
| PH690-40 | -40 | 63 | 2.1/2 | 63.0 | 3.23 | 82.0 | 300 | 20 | 1200 | 80 | 9.1 | 230 | 3.100 |
Temperature Range : Continuous: -30°C to +65°C
