    PH187 - SAE 100 R12 HARD - X MSHA

    Applicable Standard : SAE J517 - 100R12 / EN 856 - R12 / ISO 3862

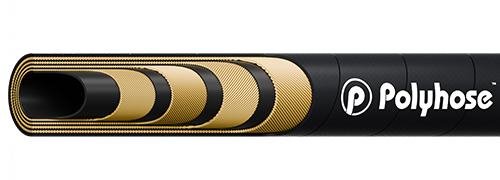

    product img

    Construction

    Inner tube

    Black colour, Synthetic rubber resistant to oil and water

    Reinforcement

    Four high tensile steel wire spiral

    Cover

    Hard-X Black, Extra abrasion, oil, ozone resistant synthetic rubber.

    Application

    Heavy duty high temperature medium pressure hydraulic lines 175 to 280 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving, Material handling equipment and machineries / systems

    Item
    Code    		 Dash
    Size    		 DN
    ID
    RI OD
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm inch mm psi bar psi bar inch mm kg/m
    PH187-06 -06 10 3/8 9.7 0.68 17.2 0.80 20.3 4060 280 16240 1120 2.52 64 0.660
    PH187-08 -08 12 1/2 12.9 0.82 20.9 0.94 23.8 4060 280 16240 1120 3.50 89 0.852
    PH187-10 -10 16 5/8 16.1 0.96 24.5 1.08 27.4 4060 280 16240 1120 4.01 102 1.059
    PH187-12 -12 19 3/4 19.2 1.10 28.0 1.21 30.7 4060 280 16240 1120 4.76 121 1.134
    PH187-16 -16 25 1 25.7 1.37 34.9 1.50 38.0 4060 280 16240 1120 6.02 153 1.980
    PH187-20 -20 31 1.1/4 32.2 1.73 43.9 1.85 47.0 3045 210 12180 840 8.27 210 2.822
    PH187-24 -24 38 1.1/2 38.5 1.98 50.4 2.11 53.5 2540 175 10150 700 10.00 254 3.229
    PH187-32 -32 51 2 51.4 2.50 63.6 2.63 66.7 2540 175 10150 700 12.52 318 4.622
    PH187-40 -40 63 2.1/2 63.5 2.95 75.0 3.07 78.0 2030 140 8120 560 14.20 360 5.285

    imgTemperature Range : Continuous: -40°C to +121°C

    Impulse Cycles : 500,000 cycles
