    PH296 - 1SNX - HP

    Applicable Standard : Exceeds EN 857

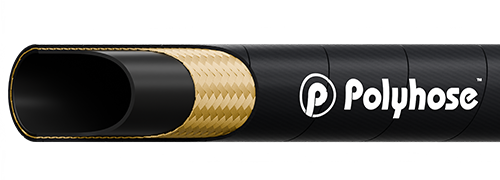

    product img

    Construction

    Inner tube

    Black Colour, Synthetic rubber resistant to oil and water

    Reinforcement

    Single steel wire braid

    Cover

    Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

    Application

    Medium Pressure Hydraulic Lines 110 to 290 bar requires compact outer dia and high flexibility for use with petroleum,synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Construction & Material handling equipment and machineries/systems

    Cover Options
    PH296 : MSHA
    PH206 : ABRAZONX MSHA
    Temperature Usage Options
    PH237 : High temperature MSHA cover -40°C to +135°C
    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH296-04 -04 06 1/4 6.7 0.47 12.0 4205 290 16820 1160 1.6 40 0.186
    PH296-05 -05 08 5/16 8.2 0.55 14.0 3625 250 14500 1000 2.2 55 0.235
    PH296-06 -06 10 3/8 9.8 0.63 16.0 3335 230 13340 920 2.6 65 0.295
    PH296-08 -08 12 1/2 13.1 0.75 19.0 2900 200 11600 800 3.1 80 0.377
    PH296-10 -10 16 5/8 16.2 0.87 22.0 2175 150 8700 600 4.1 105 0.454
    PH296-12 -12 19 3/4 19.3 1.02 26.0 1815 125 7250 500 4.7 120 0.582
    PH296-16 -16 25 1 25.9 1.30 33.0 1595 110 6380 440 6.3 160 0.804
    PH296-20 -20 31 1.1/4 32.0 1.73 44.0 1450 100 5800 400 11.8 300 1.516

    imgTemperature Range : Continuous: -40°C to +100°C

    Intermittent : +120°C

    Impulse Cycles : 150,000 cycles

    *Smooth cover available only upto size 1"
